EE28 Transformer SMPS High Frequency
EE28 transformer high frequency is widely adopted in SMPS switching power supply systems. Designed with EE28 ferrite core structure, this power transformer features compact size, low core loss and stable electromagnetic performance for medium-power power conversion equipment.
Our custom EE28 transformer supports customized winding turns, inductance, isolation voltage and bobbin structure. It works perfectly for flyback converters, LED power supplies, battery chargers and industrial control power modules.
Compared with other series magnetic components such as EFD high frequency transformer, EE28 transformer offers better heat dissipation and higher power density within similar installation dimensions.
Specification Of EE28 Transformer SMPS High Frequency
| Type | Structure type | Dimension(mm) | Pin Row1(mm) | Pin Row2(mm) | Row Pitch | OD Pin(mm) | Note | ||||
| A | B | C | Pin | Pin Pitch | Pin | Pin Pitch | |||||
| EE19-001 | Vertival | 19.5 | 14 | 16 | 3 | 5.00 | 3 | 5.00 | 11 | ∅0.7 | |
| EE19-002 | Vertival | 22 | 16 | 19 | 5 | 4.00 | 5 | 4.00 | 10 | ∅0.8 | |
| EE19-003 | Vertival | 19.5 | 14 | 16 | 2 | 8.00 | 2 | 8.00 | 9.6 | ∅0.7 | |
| EE19-004 | Vertival | 19.5 | 14 | 17 | 4 | 4.00 | 3 | 4.00 | 11 | ∅0.7 | |
| EE19-005 | Vertival | 19.5 | 15.7 | 19 | 6 | 2.70 | 4 | 3.50 | 12.1 | ∅0.6 | |
| EE19-006 | Horizontal | 19.5 | 16.3 | 12.5 | 4 | 4.78 | 4 | 4.78 | 12.75 | ∅0.7 | |
| EE19-007 | Horizontal | 19.5 | 17.3 | 12.5 | 5 | 3.00 | 5 | 3.00 | 12.5 | ∅0.7 | |
| EE19-008 | Horizontal | 19.5 | 17.4 | 11.1 | 6 | 2.50 | 4 | 2.5/7.5 | 14.2 | SQ0.4*0.6 | 4 slot |
| EE19-009 | Horizontal | 19.5 | 16 | 14.8 | 4 | 4.75 | 4 | 4.75 | 12.5 | ∅0.7 | 2 slot |
| EE20-001 | Vertival | 21 | 16 | 21 | 3 | 5.00 | 3 | 5.00 | 12.5 | ∅0.7 | |
| EE22-001 | Vertival | 23 | 16 | 23 | 5 | 4.00 | 5 | 4.00 | 10 | ∅0.8 | |
| EE22-002 | Horizontal | 23 | 16 | 13.2 | 4 | 4.25/4.8 | 4 | 4.25/4.8 | 13 | ∅0.7 | |
| EE22-003 | Horizontal | 23 | 22.5 | 20.5 | 5 | 4.00 | 4 | 5.00 | 17 | ∅0.6 | |
| EE25-001 | Vertival | 26 | 17.2 | 22 | 4 | 5.00 | 4 | 5.00 | 12 | ∅0.8 | |
| EE25-002 | Vertival | 26 | 20.5 | 22 | 5 | 5.00 | 5 | 5.00 | 15 | ∅0.8 | |
| EE25-003 | Vertival | 26 | 25 | 15.6 | 5 | 5.0/6.0 | 5 | 5.0/6.0 | 22 | SQ0.64*0.64 | |
| EE25-004 | Horizontal | 26 | 20.5 | 17.5 | 4 | 4.00 | 4 | 4.00 | 15 | ∅0.8 | |
| EE25-005 | Horizontal | 26.3 | 27.5 | 25 | 4 | 5.00 | 4 | 5.00 | 20 | ∅0.8 | 2 slot |
| EE28-001 | Vertival | 29 | 22 | 21 | 5 | 5.0 | 5 | 5 | 17.5 | ∅0.8 | |
| EE30-001 | Vertival | 31 | 22 | 27 | 5 | 5.0 | 5 | 5 | 17.5 | ∅0.8 | |
| EE33-001 | Vertival | 34 | 29 | 32 | 6 | 5.0 | 6 | 5 | 22.7 | ∅0.8 | |
| EE40-001 | Vertival | 41 | 28 | 34 | 6 | 5.0 | 6 | 5 | 22.6 | ∅0.8 | |
| EE40-002 | Horizontal | 41 | 32 | 28.5 | 7 | 5.0 | 7 | 5 | 25.8 | ∅0.8 | |
| EE42-001 | Vertival | 43 | 39 | 44 | 6 | 5.0 | 6 | 5 | 32.2 | ∅1.0 | |
| EE42-002 | Horizontal | 43 | 40 | 36.5 | 8 | 5.0 | 8 | 5 | 35 | ∅1.0 | |
| EE42-003 | Horizontal | 43 | 44 | 39 | 8 | 5.0 | 8 | 5 | 35.5 | ∅1.0 | |
| EE55-001 | Horizontal | 56 | 56 | 48 | 7 | 5.0 | 7 | 5 | 40 | ∅1.0 | |
| EE55-002 | Horizontal | 56 | 56 | 54 | 10 | 5.0 | 10 | 5 | 45 | ∅1.0 | |
| EE65-001 | Vertival | 66 | 55 | 65 | 10 | 5.0/8.0 | 6 | 5.0/24.5 | 45.5 | ∅1.3 | |
Key Features Of EE28 Transformer SMPS High Frequency
- EE28 ferrite core, low high-frequency loss
- Custom winding specification, inductance & isolation voltage
- Multiple bobbin options: horizontal / vertical type
- High withstand voltage, reliable insulation
- Suitable for operating frequency: 20kHz ~ 200kHz
- Support customized pin layout according to PCB requirements
Typical Applications
- Switch Mode Power Supply (SMPS)
- LED driver power supply
- Battery charging equipment
- Household appliance power modules
- Industrial control switching power supplies
- Audio power conversion equipment
We provide one-stop custom service for EE28 high frequency transformers. Send your specification requirements including power, input & output voltage, frequency and dimension limits to get tailored samples and quotation.
All EE28 transformer high frequency are manufactured following IEC international electromagnetic component safety standards. Each finished product passes withstand voltage test, insulation resistance test and load aging test before shipment.
Details

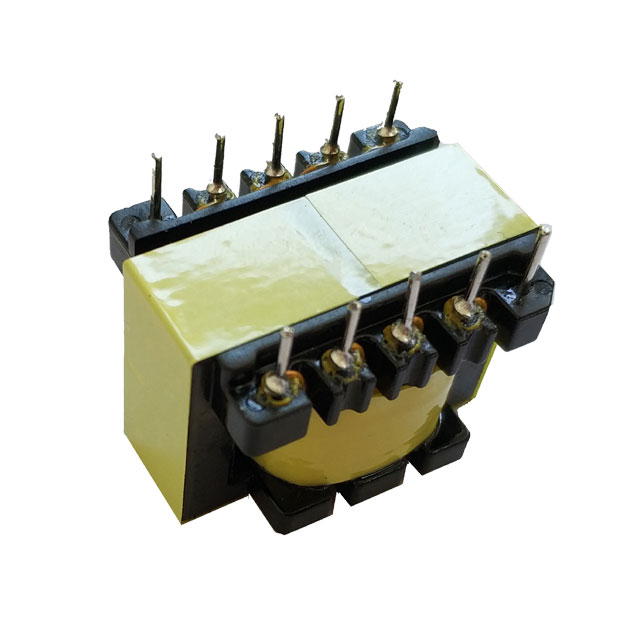

EE28 ferrite transformer with vertical pin layout
